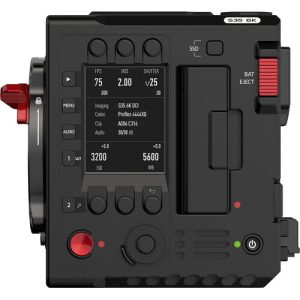

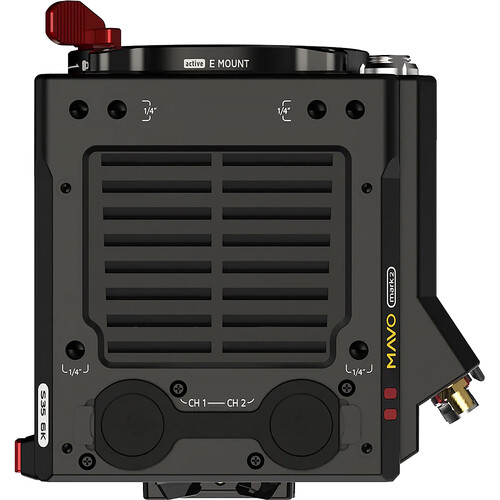

MAVO Mark2 S35 Digital Cinema Camera (ARRI PL)
$5 167.80 excl. BTW
- 6K Super35 3:2 CMOS Sensor
- Up to 6K Wide 96 fps, 4K Wide 112 fps
- Up to 6K 60 fps ProRes 4444 XQ Capture
- Includes ARRI PL Mount
- Dual Native 800/3200 ISOs
- Supports Active PL and Sony E-Mounts
- Optical LPF with UV and IR-Cut Filter
- Advanced Color Processing
- KineMAG SSD Recording
- Compact, Lightweight Design
- Specs
Imaging

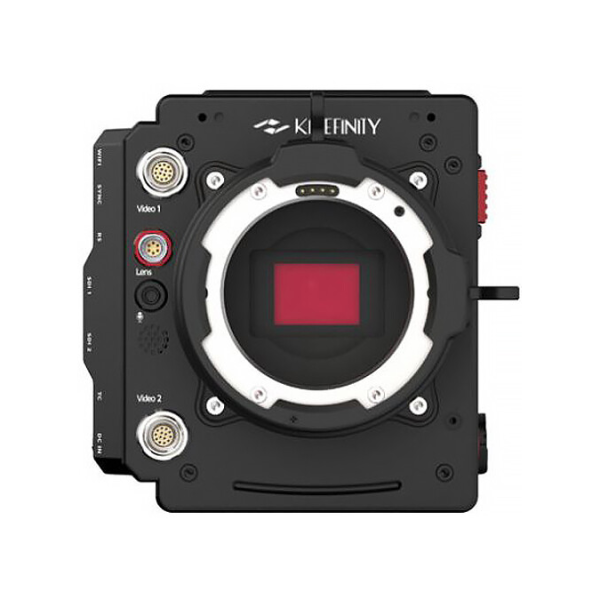

| Lens Mount |
Interchangeable Mount with Included ARRI PL
|
| Lens Communication |
Yes
|
| Image Sensor |
24 x 16 mm (Super35) CMOS
|
| Effective Sensor Resolution |
25 Megapixel (6144 x 4016)
|
| Image Stabilization |
No
|
| Built-In ND Filter |
No
|
| Built-In CC Filter |
No
|
| Internal Filter Holder |
No
|
| Capture Type |
Video Only
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Angle |
0.7 to 358°
|
| ISO/Gain Sensitivity |
Native: 800 to 3200
|
| Advertised Dynamic Range |
14 Stops
|
Focus
| Focus Mode |
Manual Focus Only
|
Video Capture
| Internal Recording |
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit
6144 x 4016 from 0.2 to 60.00 fps 5760 x 3840 from 0.2 to 60.00 fps* 5120 x 3840 from 0.2 to 60.00 fps* 4864 x 3840 from 0.2 to 60.00 fps* 6144 x 3240 from 0.2 to 75 fps 5760 x 3240 from 0.2 to 75 fps* 5120 x 2700 from 0.2 to 90 fps* 6144 x 2516 from 0.2 to 96 fps 3840 x 2460 from 0.2 to 60.00 fps* 3456 x 2460 from 0.2 to 60.00 fps* 3072 x 2460 from 0.2 to 60.00 fps* 5120 x 2160 from 0.2 to 112 fps* 4096 x 2160 from 0.2 to 75 fps* 3840 x 2160 from 0.2 to 75 fps* 4096 x 1672 from 0.2 to 75 fps* 3840 x 1576 from 0.2 to 96 fps* *Sensor Crops During Recording |
| Video Output |
via Proprietary Module / SDI/BNC
4096 x 2160 1920 x 1080 |
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
KineLOG3, Rec709
|
| Built-In Microphone |
Mono
|
| Audio Recording |
2-Channel, 24-Bit at 48 kHz via LPCM Audio
|
Interface
| Media/Memory Card Slot |
Single Slot: KineMAG Nano SSD
|
| Internal Storage |
No
|

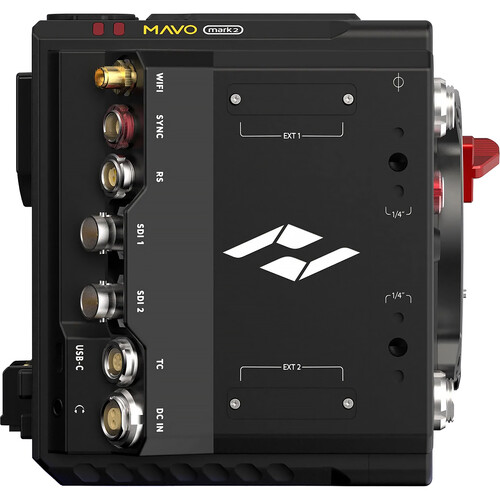

| Video I/O |
2x Proprietary Output
1x BNC (3G-SDI) Output |
| Audio I/O |
2x XLR 3-Pin Input
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x LEMO 2-Pin (11 to 19VDC up to 3 A) Input
|
| Other I/O |
1x LEMO 5-Pin (RS-232) Control
1x LEMO 5-Pin (Timecode) 1x 9-Pin (RS-422, Sync) 1x USB-C (Firmware) Input |
| Wireless |
Wi-Fi 5 (802.11ac)
*Via Included Adapter |
| Mobile App Compatible |
Yes (Requires Included Adapter): Android & iOS
App Name: Kinefinety App Functionality: Adjust Settings, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Power

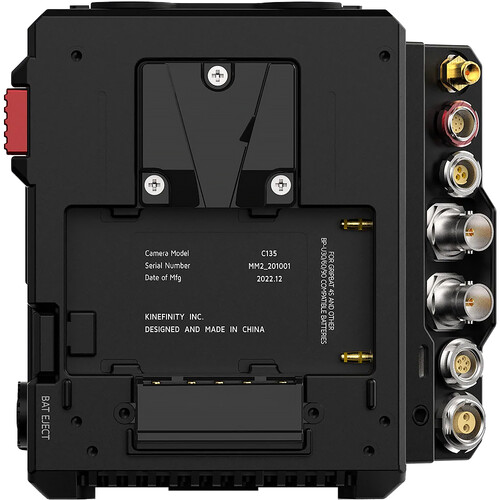

| Battery |
V-Mount
|
| Power Consumption |
23 W
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
General
| Tripod Mount |
1x 1/4″-20 Female
2x 3/8″-16 Female |
| Accessory Mounting Thread |
4x 1/4″-20
|
| Materials |
Aluminum
|
| Dimensions (W x H x D) |
4.9 x 4.2 x 4.2″ / 124 x 107 x 106 mm (Without Protrusions)
|
| Weight |
2.98 lb / 1.35 kg (Body Only)
|
