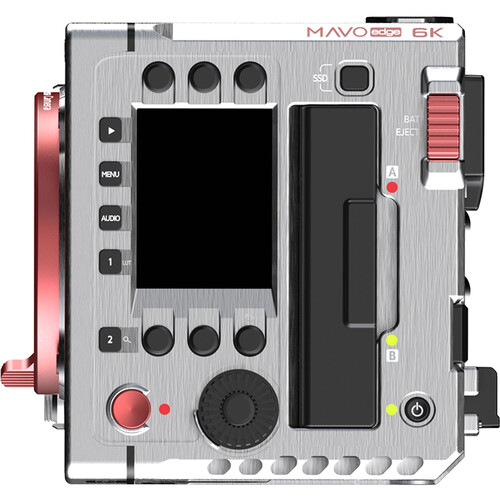

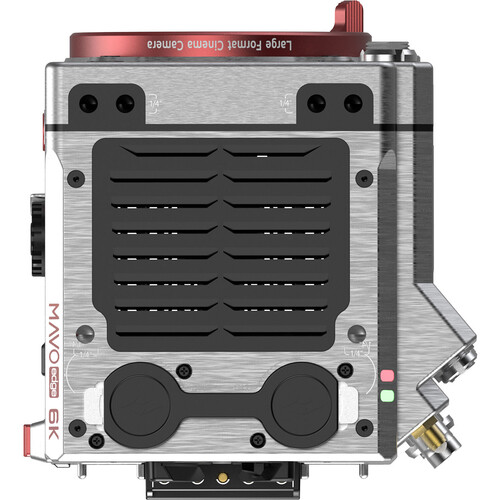

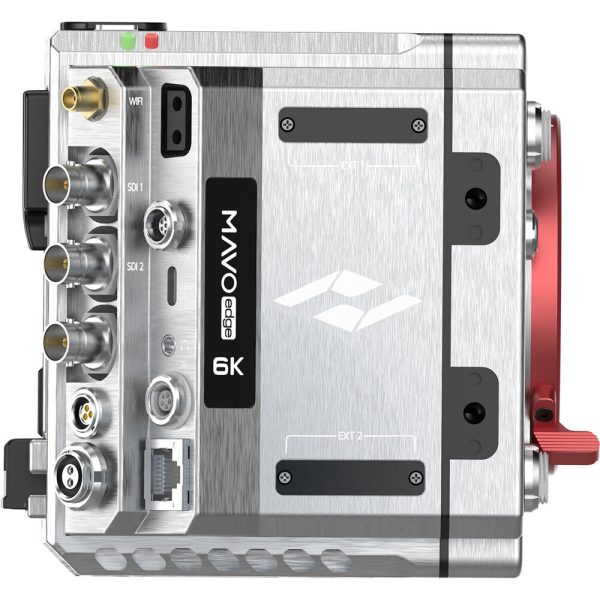

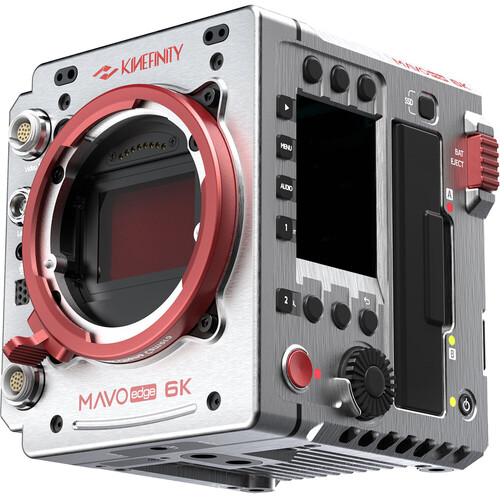

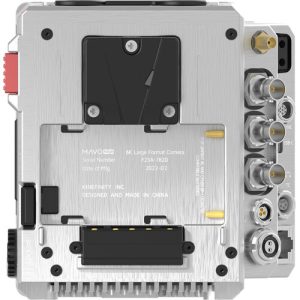

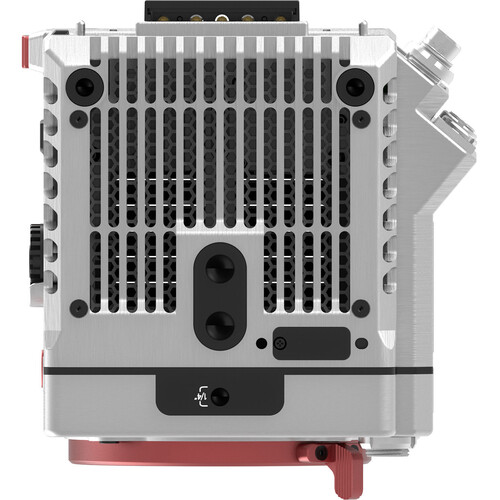

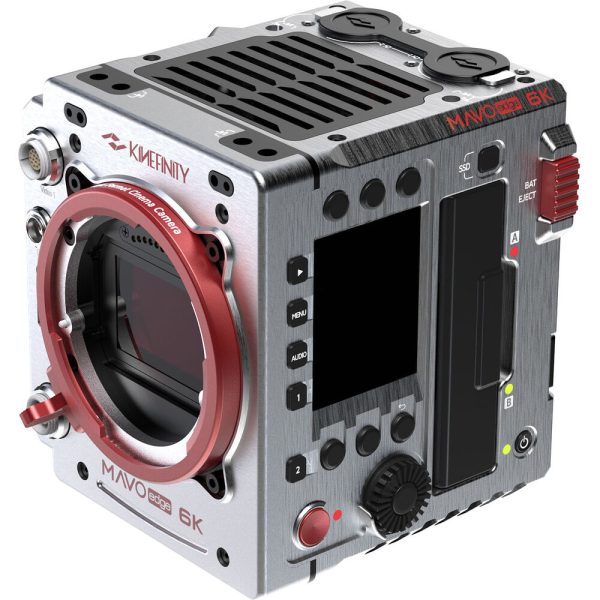

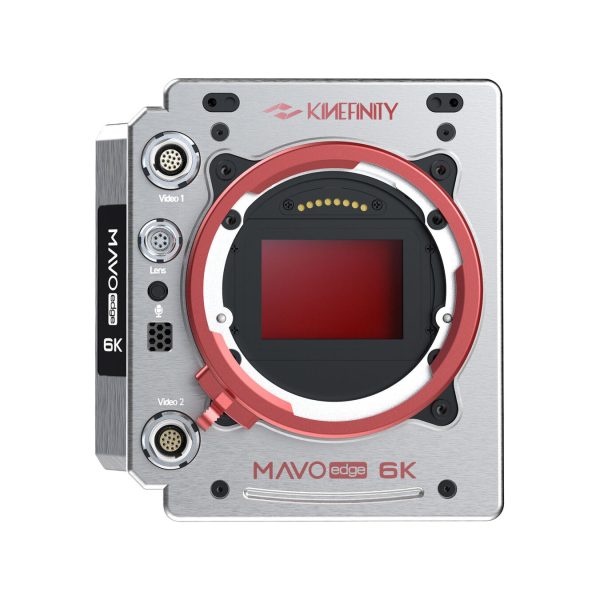

MAVO Edge 6K Digital Cinema Camera (Cyber)
$10 998.90 excl. BTW
- 6K 3:2 Full-Frame CMOS Sensor
- FF Open Gate 6016 x 3984 up to 48 fps
- Record In-Camera up to 6K ProRes 4444 XQ
- Dual Native 800/5120 ISOs
- High-Speed S35 4K150/S16 2K290/MFT 3K195
- 14+ Stops Dynamic Range
- e-ND Darkens by 2 to 8 Stops
- 2 x BNC & 2 x Kinefinity Video Outputs
- Native KineMOUNT Lens Mount
- Adapts to PL, LPL, Active EF & Passive E
- Specs
Imaging
| Lens Mount |
KineMOUNT
|
| Lens Communication |
Yes
|
| Image Sensor |
Full-Frame CMOS
|
| Effective Sensor Resolution |
23.97 Megapixel (6016 x 3984)
|
| Image Stabilization |
No
|
| Built-In ND Filter |
0.6 to 2.4 Stop Electronic ND Filter
|
| Built-In CC Filter |
No
|
| Internal Filter Holder |
Yes
|
| Capture Type |
Video Only
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
.7 to 358 Second
|
| Shutter Angle |
0.7 to 358°
|
| ISO/Gain Sensitivity |
Native: 800 to 5120
|
| Signal-to-Noise Ratio |
Not Specified by Manufacturer
|
| Advertised Dynamic Range |
14 Stops
|
Focus
| Focus Mode |
Manual Focus Only
|
Video Capture
| Internal Recording |
MOV/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ
6016 x 3984 from 0.2 to 48.00 fps 5760 x 3700 from 0.2 to 50 fps 5120 x 3700 from 0.2 to 50 fps 4608 x 3700 from 0.2 to 50 fps 5760 x 3240 from 0.2 to 58 fps 6016 x 3172 from 0.2 to 60.00 fps 5120 x 2700 from 0.2 to 70 fps 4096 x 2700 from 0.2 to 70 fps 3712 x 2700 from 0.2 to 70 fps 3328 x 2700 from 0.2 to 70 fps 2688 x 2688 from 0.2 to 70 fps 6016 x 2520 from 0.2 to 75 fps 3840 x 2460 from 0.2 to 50 fps 3456 x 2460 from 0.2 to 50 fps 3072 x 2460 from 0.2 to 50 fps 5760 x 2400 from 0.2 to 75 fps 5120 x 2160 from 0.2 to 86 fps 4096 x 2160 from 0.2 to 112 fps 3840 x 2160 from 0.2 to 120 fps 4096 x 1720 from 0.2 to 140 fps 3072 x 1620 from 0.2 to 144 fps 2944 x 1620 from 0.2 to 145 fps 3840 x 1600 from 0.2 to 150 fps 3072 x 1200 from 0.2 to 195 fps 2944 x 1200 from 0.2 to 195 fps 2048 x 1080 from 0.2 to 200 fps 1920 x 1080 from 0.2 to 220 fps 2048 x 860 from 0.2 to 270 fps 1920 x 800 from 0.2 to 290 fps |
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
KineLOG3, Rec709
|
| Built-In Microphone |
Mono
|
| Audio Recording |
1-Channel
|
| IP Streaming |
Yes
|
Interface
| Media/Memory Card Slot |
Dual Slot: KineMAG Nano SSD
|
| Internal Storage |
No
|
| Video I/O |
2x BNC (3G-SDI) Output
2x Proprietary Output |
| Audio I/O |
2x XLR 3-Pin Input (+48 V Phantom Power)
1x 1/8″ / 3.5 mm TRRS Headphone/Mic Microphone Input 1x 1/8″ / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O |
1x LEMO 2-Pin Input
|
| Other I/O |
1x USB-C
1x RJ45 (Gigabit Ethernet) Control 1x LEMO 5-Pin (Timecode) Control Input/Output 1x LEMO 6-Pin Control 1x LEMO 7-Pin (RS-232) Control 1x Fischer 3-Pin Control 2x Pogo 10-Pin Control Input/Output |
| Wireless |
Wi-Fi
*Built-In |
| Mobile App Compatible |
No
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |
No
|
Viewfinder
| Type |
Optional, Not Included
|
Power
| Power Consumption |
32 W
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
General
| Shoe Mount |
No
|
| Tripod Mount |
1/4″-20 Female
3/8″-16 Female |
| Accessory Mounting Thread |
No
|
| Materials |
Aluminum
|
| Dimensions (W x H x D) |
4.9 x 4.3 x 4.2″ / 124 x 109 x 106 mm
|
| Weight |
3.6 lb / 1.6 kg (Body Only)
|
